Qty 8 Electrolytic And Bleeder/Equilization Resistors For The Big 3 Ameritron Pa’s

Description

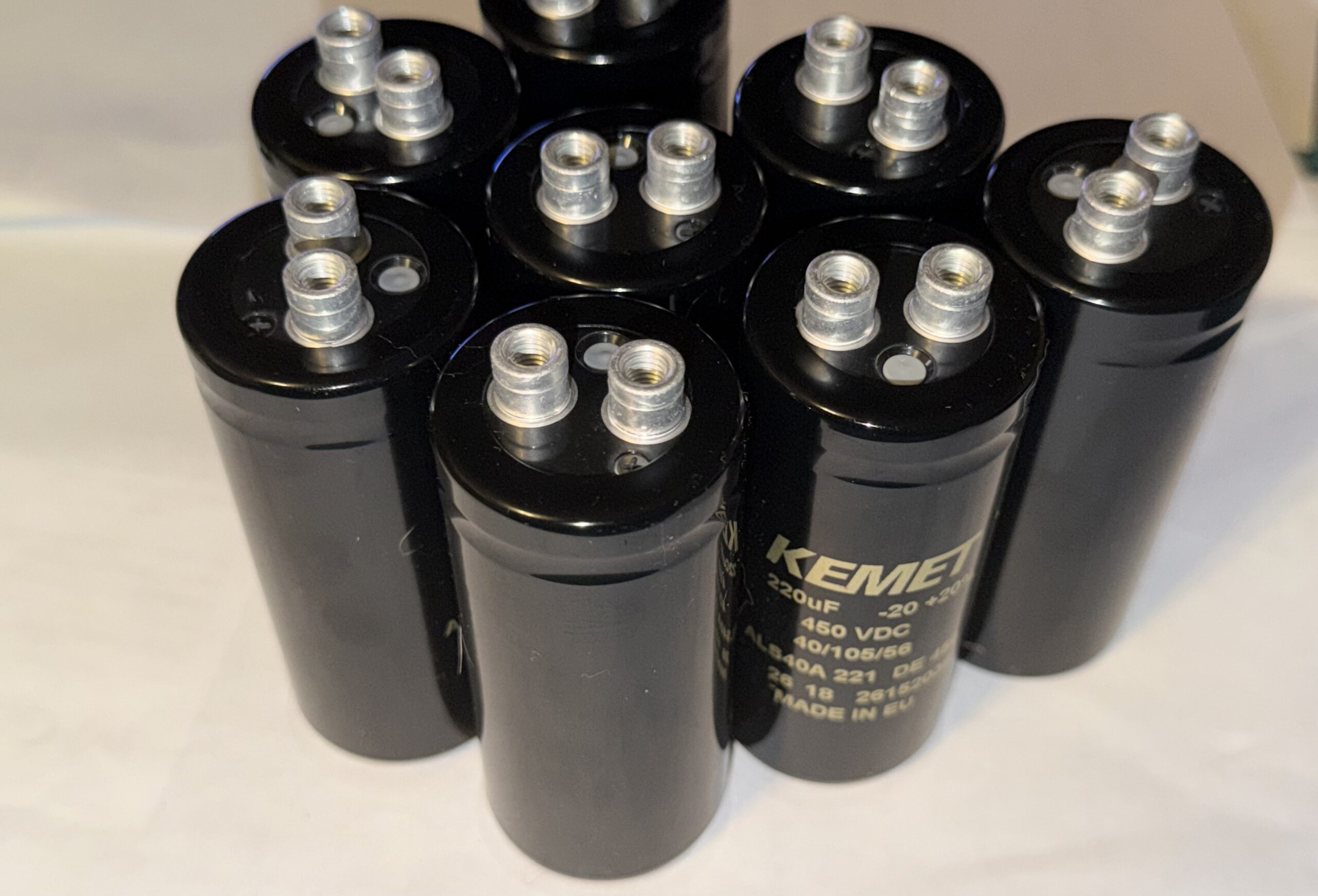

Highest quality 500 volt 220uf Kemet screw type electrolytic capacitors. 11000 hour @ 85c, 2.7 amp ripple current @ 100hz, 635 milliohm esr @ 100hz.

Comes with 8 capacitors, 8 new 51k 7 watt, flame proof, pulse withstanding, saftey metal oxide film resistors. Made by te connectivity.

No need to change the entire board, caps in my years of experience have only failed when a bleeder/equalization resistor opened. And 9.9 times out of 10 was one of the pink type. These give extra headroom.

The aero brand caps were pone to failure though, they were used in the very early pa’s.

Re use old screws

These are best for the Al-1500,Al1200,Al82 Ameritron Amplifiers.
